Liebherr present new mid-sized wheel loader series

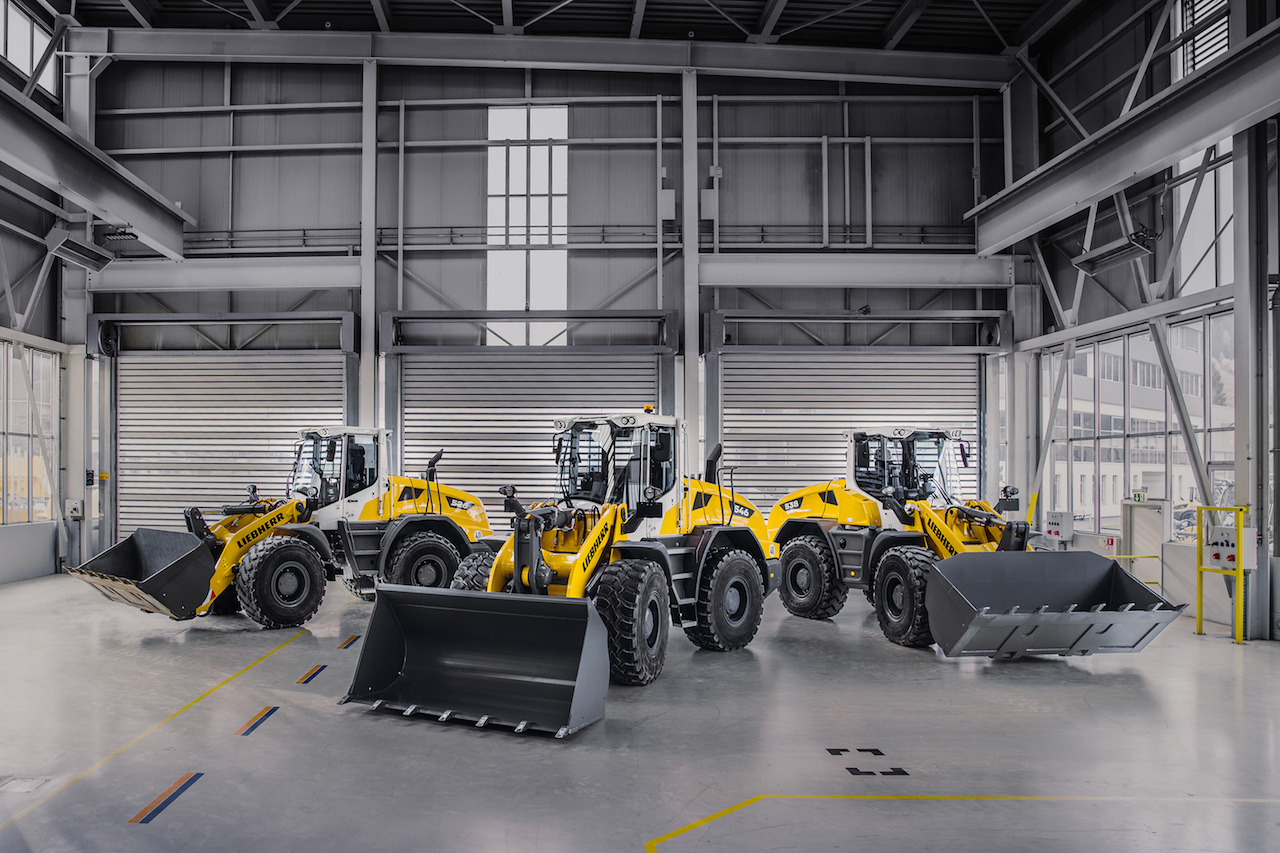

Liebherr’s latest Generation 8 mid-size wheel loader series – the L 526, L 538 and L 546 – are characterized by a significant increase in performance compared with the previous generation
Liebherr’s latest Generation 8 mid-size wheel loader series – the L 526, L 538 and L 546 – are characterized by a significant increase in performance compared with the previous generation

New wheel loaders characterized by powerful design and intelligent assistance systems

LIEBHERR have redeveloped and fundamentally revised their mid-sized wheel loader range. The three models in the latest Generation 8 – the L 526, L 538 and L 546 – have bucket sizes between 2.2 and 3.0m3 in the standard version and are characterized by a significant increase in performance compared with the previous generation.

The new L 526, for example, has around 20% more engine power and over 20% higher breakout forces than its predecessor. The L 538 and L 546 models also impress with performance increases in all areas, eg with the optimized travel drive providing increased traction to ensure that the new wheel loaders accelerate dynamically in everyday work and can penetrate powerfully into all materials.



Liebherr have also reinforced the steel construction of the front section of the new wheel loaders in order to prepare the machines for handling heavy loads, whilst structural reinforcements on the new lift arms also increase robustness. In addition, the optimized z-bar kinematics with electro-hydraulic pilot controls has larger hydraulic cylinders and more powerful working pumps. The combination of these innovations allows faster cycle times and dynamic and powerful work movements – even with heavy attachments such as high dump buckets.

The new L 526 has around 20% more engine power and over 20% higher breakout forces than its predecessor
The new L 526 has around 20% more engine power and over 20% higher breakout forces than its predecessor

Liebherr also offer numerous equipment options for the lift arms for industry-specific challenges. High Lift lift arms, for example, are an extended variant of the z-bar kinematics and ensure greater range and efficient loading processes at all heights. For wheel loader applications that regularly require different attachments, there is a view-optimized quick-coupler and the fully automatic LIKUFIX quick-coupler system. This allows the machine operator to change between mechanical and hydraulic working tools from the cab quickly and safely at the touch of a button, thereby saving time and reducing the risk of accidents.

Well thought-out details make day-to-day work with the new wheel loaders easier. For example, the new bucket-tilt assist helps when working with sticky materials, such as damp soil, and ensures accurate loading by shaking out the bucket. In the course of redesigning the lift arms, Liebherr have also revised the bucket design of the new mid-sized wheel loaders. Consequently, customers can now more accurately tailor the individual elements and wear parts of the buckets to their needs at the time of ordering.

The L 546 has a 3.0 cubic metre bucket in the standard version
The L 546 has a 3.0 cubic metre bucket in the standard version

In addition to the new lift arms, the optimization of the hydrostatic travel drive, in particular, contributes to the increased productivity of the wheel loaders. The new, more powerful engines are characterized by a higher maximum torque at a lower nominal speed. In this way, performance and efficiency can be increased with the same low fuel consumption.

More powerful hydraulic components, such as larger travel motors and travel pumps, ensure greater traction in all three models and thus rapid loading cycles. For a high degree of robustness, Liebherr have reinforced the axles and travel drive components; depending on the model, all three wheel loaders have larger front or rear axles than their predecessors.

Modern design has been reflected in the engine bonnet, which offers optimized visibility, whilst the comfortable operator’s cab and intelligent equipment are also part of the overall package of the new mid-sized Liebherr wheel loaders. An example of this is the active personnel detection with brake assistant.

This optional assistance system, which is installed at the rear of the wheel loader, warns the machine operator visually on the display and with acoustic signals of dangers in the rear area of the wheel loader. In order to provide a specific warning of imminent injury to persons, the assistance system independently distinguishes between humans and objects using smart sensors. As soon as the active personnel detection emits a warning signal, the brake assistant automatically reduces the speed of the wheel loader to a standstill in order to avoid a potential accident.

Key specifications (standard versions):

  • The L526 has a tipping load of 8,730kg, a bucket capacity of 2.2m3, an operating weight of 13,170kg, and 116kW (158hp) of engine power

  • The L538 has a tipping load of 9,650kg, a bucket capacity of 2.6m3, an operating weight of 14,520kg, and 129kW (175hp) of engine power

  • The L546 has a tipping load of 11,010kg, a bucket capacity of 3.0m3, an operating weight of 15,410kg, and 138kW (188hp) of engine power.

All three wheel loaders meet the currently applicable Stage V or Tier 4 final emission standards.
