Caterpillar announce updates to Cat PM300 cold planer series

Increased peak torque and gross power and improved working environment for operators

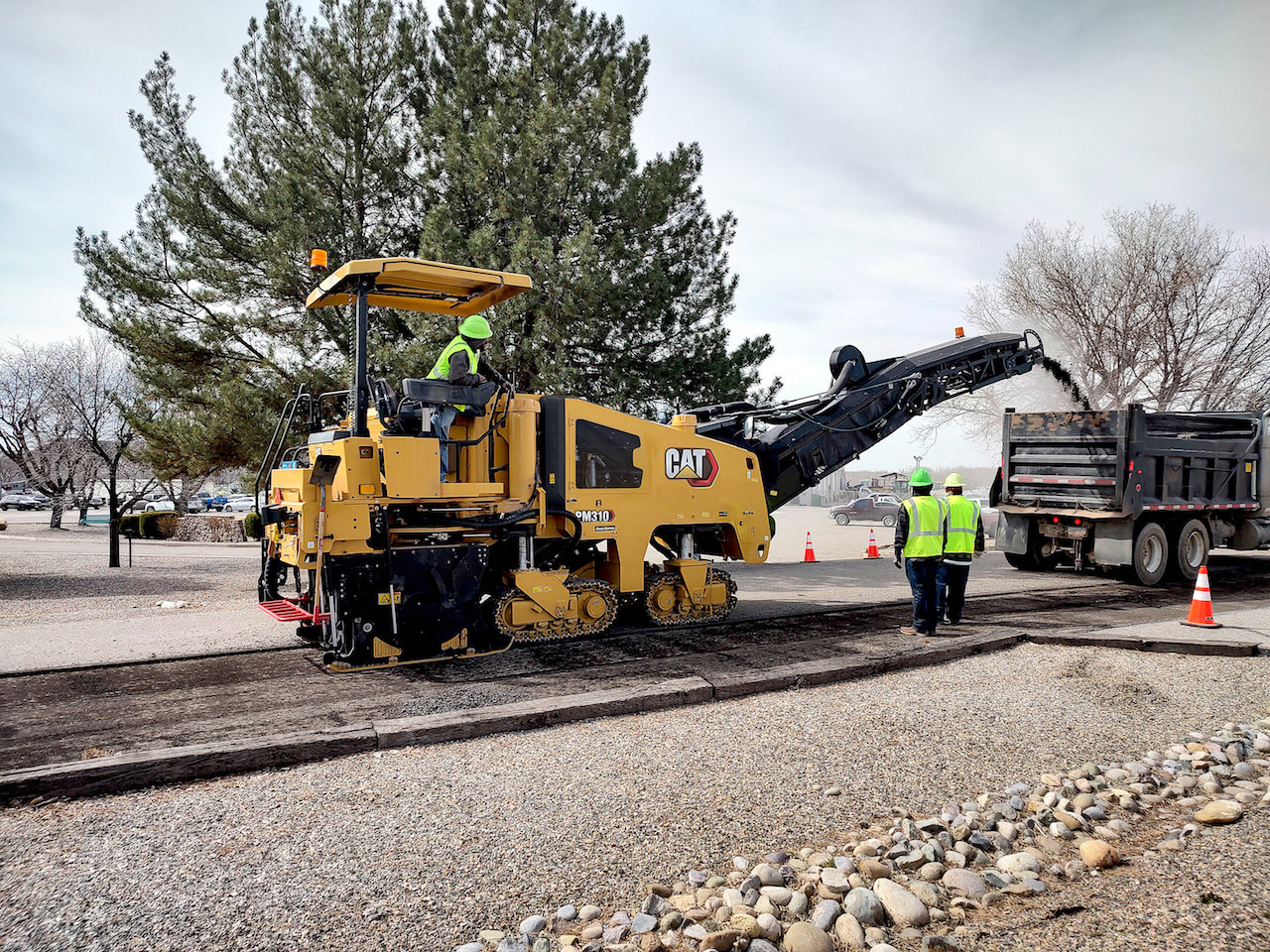

CATERPILLAR’s PM310, PM312, and PM313 cold planers now feature multiple design enhancements that help to improve machine performance, operating comfort, and milling power. The PM300 Series is said to excel in small-to-medium applications where a compact, highly manoeuvrable machine with high production capabilities is required.

The latest PM300 models integrate the Cat C9.3B engine that delivers an increase in gross power and more available torque, based on standard performance testing.

Offering a gross power rating of 256kW (343hp), the Cat C9.3B is available in configurations that meet US EPA Tier 4 Final, EU Stage V.

The Cat C9.3B engine features lower complexity and improved electronic, fuel, and air systems. Easier access to engine oil filters simplifies maintenance, whilst multi-piece, cartridge-style engine filters reduce waste and lower replacement costs.

The latest PM300 series design includes a redesign of the transition flashing between primary and loading conveyors, improving containment of material and reducing build-up on the front machine frame.

Further containment of material is achieved through feature enhancements to the right-hand side plate, chamber-to-conveyor sealing, and loading conveyor belt sealing. Front track deflectors positioned in front of the drive motors offer additional protection from debris impact and build-up, improving service life.

Operators can now track the cutting edge from either side of the machine, thanks to the addition of an adjustable on-screen guidance line feature to the left-hand camera. Ground personnel can also now control the obstacle jump capability from the rear ground controls to improve milling efficiency.

Wide-dispersion LED working and LED roading light options for the PM310, PM312 and PM313 improve safety and visibility during milling and transportation around the jobsite.

Offering the ability to be stowed when not in use, an exhaust deflector option redirects exhaust away from buildings and ground personnel to improve the working environment, whilst the optional dust-abatement ducting has been redesigned to further increase sealing and suction.
