Technidrive expand Drum Drive range

22 July, 2025

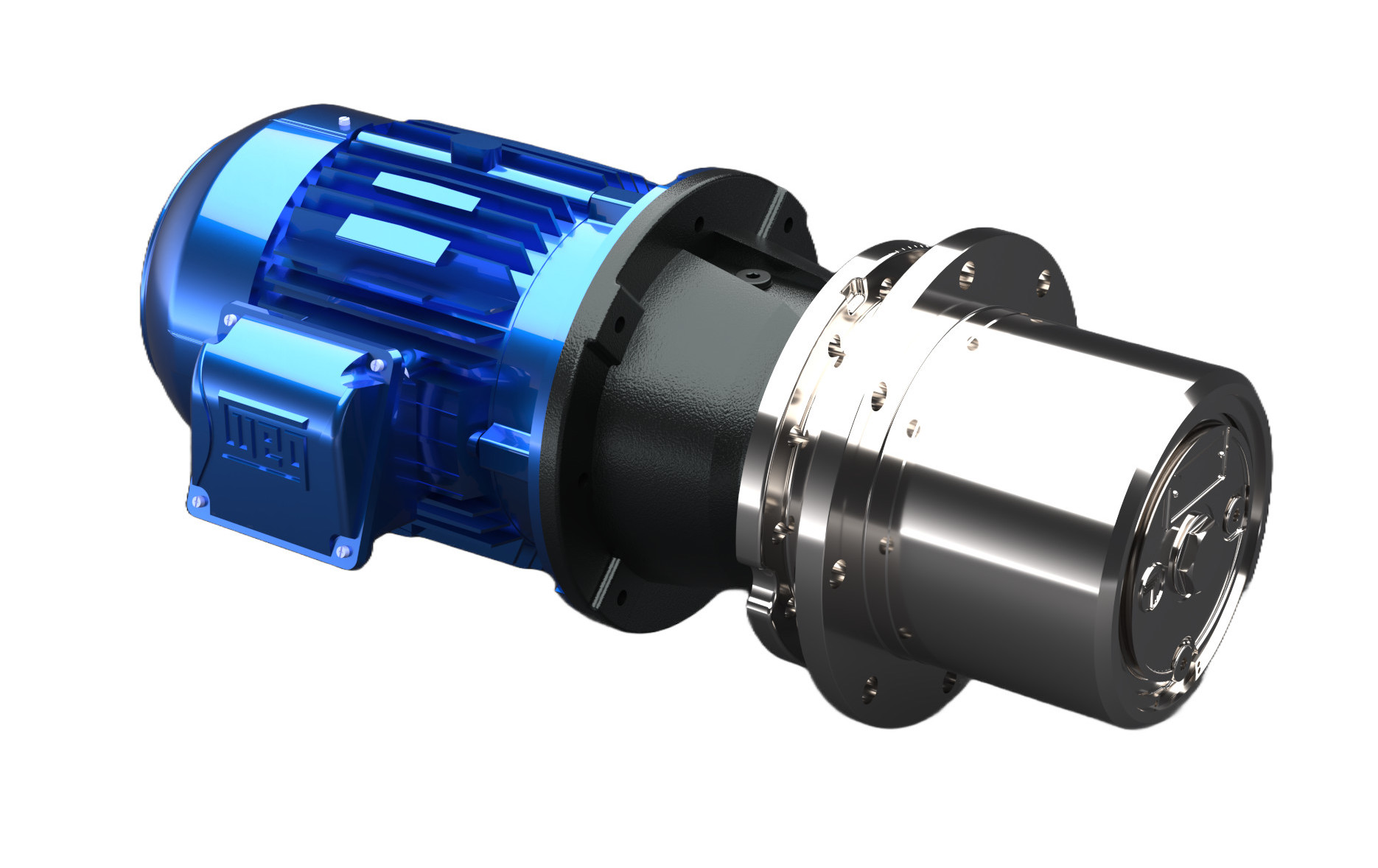

Compact and high-performing, the 80M model supports high-speed, low-torque operations with up to 18.5kW of power

New gearbox options support winch and conveyor electrification in harsh industrial environments

TECHNIDRIVE, specialists in electric motor and gearbox solutions, have extended their Drum Drive range to meet growing demand for electrified, energy-efficient conveyors across heavy industries. The latest additions offer greater torque capacities, flexible mounting, and reduced maintenance – helping operators meet both operational and sustainability goals.

Built for demanding environments such as quarrying and recycling, the Drum Drive is a compact, integrated motor and gearbox system used in conveyors and winch systems. With the extended Drum Drive range, Technidrive now support a broader spectrum of applications, from high-torque feeders to fast-running conveyors and heavy-duty winches.

The newly introduced 80M model offers dedicated solutions for high-speed, lower-torque applications. Designed for compactness and performance, the 80M features a power range of 2.2–18.5kW and delivers up to 10,000Nm of torque, while being up to 72% lighter than equivalent bevel helical units.

For applications requiring winch functionality, the 80W Drum Drive is a dedicated solution. Featuring heavy-duty bearings, integrated gearing, and optional failsafe braking, the 80W supports power ratings from 0.12–75.0kW and torque output up to 42,000Nm – all within a footprint up to 60% lighter than traditional alternatives.

The 80W Drum Drive delivers up to 42,000Nm of torque – ideal for heavy-duty winch applications in harsh environments

In medium-to-large belt conveyor systems, the 80D variant combines integrated gearing with external IEC motor compatibility. It delivers high torque in a streamlined package, making it ideal for rugged operating conditions. Meanwhile, the 80MD model offers a completely enclosed solution tailored for fixed belt conveyors operating in harsh environments. With drum diameters ranging from 320–800mm and widths from 500–1,400mm, the 80MD also benefits from a cycloidal-pin gear mechanism, improving durability, transmission stability, and service life.

Designed for conveyor systems, the 80D integrates gearing and supports IEC motors, delivering high torque in a streamlined package

‘By expanding the Drum Drive range, we can now support a wider variety of conveyor and winch applications – particularly where space is tight and torque demands are high,’ explained David Strain, technical director at Technidrive. ‘These upgrades help OEMs and operators replace bulky hydraulic systems with compact, energy-efficient alternatives that are easier to install and maintain.’

The Drum Drive’s integrated design allows the motor and gearbox system to be mounted directly inside the conveyor head drum, functioning as a bearing and removing the need for external shafts and lubrication systems. The result is a lower total cost of ownership – up to 33% less than conventional bevel helical units – and a significant reduction in structural load.

All Drum Drive units are compatible with WEG’s high-efficiency motor technology, including hybrid and permanent magnet designs. These feature ferrite, neodymium, or synchronous reluctance (SynRM) magnets, supporting organizations’ energy-efficiency and carbon-reduction strategies.

‘With features like integrated gearing, high-efficiency motors, and reduced maintenance, the Drum Drive gives engineers a modular platform for more sustainable and agile equipment,’ added Mr Strain. ‘It’s already delivering results in quarrying and recycling, and we’re excited to see wider adoption as electrification advances.’
