Single, twin and tri-pole overband magnet development

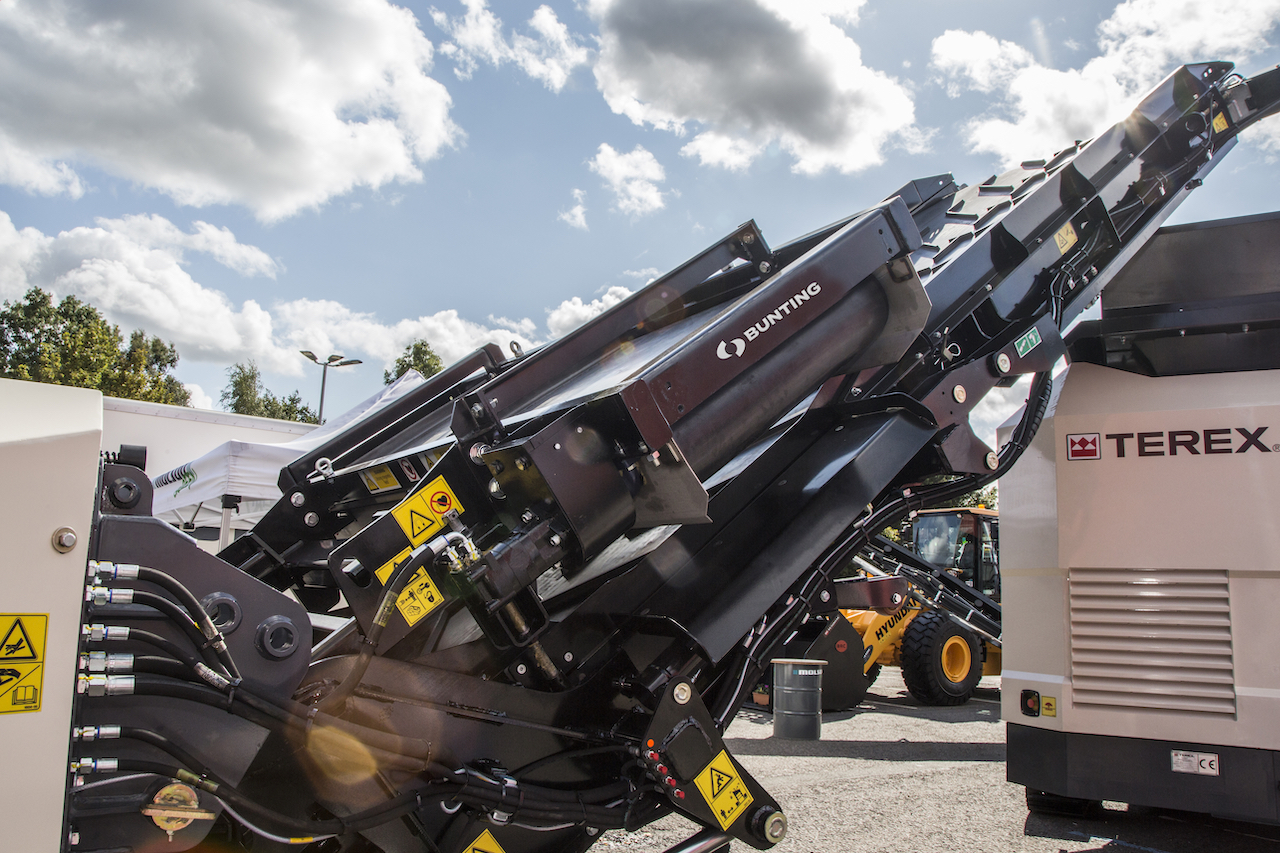

PCB single pole on a mobile crusher PCB single pole on a mobile crusher

Bunting outline the features and benefits of their three designs of permanent crossbelt overband magnet

BUNTING, one of the world’s leading designers and manufacturers of magnetic separators, eddy current separators, metal detectors and electrostatic separators, have developed three designs of permanent crossbelt overband magnet (PCB), with different magnetic polarities, to suit an ever-expanding range of applications.

Overband magnets are mounted over conveyors to separate ferrous metal from non-magnetic material and are commonly used in industries including mining, quarrying, and recycling.



The magnetic field of a PCB is generated by charging ferrite or rare-earth magnet blocks mounted inside a stainless-steel box with a steel back bar. The steel bar back forces the magnetic field to propagate through and out of the bottom of the magnet box, which would be down towards a conveyor transporting bulk materials such as aggregate or waste. Although all three designs operate under this basic principle, that is where the similarities cease.

The magnetic field of the three designs of PCB is defined as being either ‘single pole’, ‘twin pole’ or ‘tri-pole’.

The single-pole design (PCB single pole) is the simplest and most common design of PCB. Constructed with a single magnet block and steel back bar, the north pole sits on the back bar with the south pole at the bottom of the block. The field runs vertically, from north to south, projecting out from the south pole and into material being transported on the conveyor.

Single-pole magnet block Single-pole magnet block

The single-pole design removes general tramp metal from a range of products in various applications and offers a reliable, cost-effective solution for quarries, mobile recycling plant, and recycling operations.

A twin-pole configuration (PCB twin pole) uses two separate magnet boxes, mounted side by side on a single steel back bar, each with a different magnetic pole. The magnetic field flows from south to north (from one box to the other) producing a deep magnetic field that projects away and down from the magnet faces.

Twin-pole magnet block Twin-pole magnet block

The enhanced separation performance of the PCB twin pole allows capture of smaller ferrous particles. The twin-pole configuration has the advantage of lifting longer and thinner tramp ferrous metal, typically steel rebar, in a flat orientation which aids discharge and reduces belt wear. This characteristic of the twin pole occurs due to the different poles of the two magnet boxes attracting opposite ends of the ferrous metal rod, forcing it to remain flat in the field. The single-pole design attracts one end, resulting in that end striking the belt or face of the magnet box.

The tri-pole permanent crossbelt overband magnet (PCB tri-pole) has two additional steel side poles mounted either side, with a gap, of a single central magnet box. Each of the side poles has a magnetic north pole, with the centre of the box being south pole (ie three poles). This generates two magnetic fields running from the box to the steel sidepoles. The sidepoles reduce flux leakage and concentrate the magnetic field downwards toward the product.

Tri-pole magnet block Tri-pole magnet block

The greater depth of magnetic field generated by the PCB tri-pole results in a higher suspension height of the overband magnet, which is well suited to deeper troughed conveyors and higher material burdens. The tri-pole model captures smaller ferrous metals that are difficult to separate with a PCB single pole.

An added advantage is that the shape and direction of the magnetic field limits any magnetization of the overband magnet frame, which is ideal when processing materials such as waste wood containing nails and screws.

Selecting the correct permanent crossbelt overband magnet (PCB) is dictated by the application. Bunting’s applications engineers assess the ferrous metal separation objective (ie the plant being protected, or the metal being recovered); the nature of the ferrous metal (ie shape, size etc); and the conveyed material (ie size range, burden depth). These criteria assist the team in selecting the optimum PCB for any given application.
